Control logic that leaves the editor as a drawing set.

FBD, CFC and SFC on titled A4/A3 sheets, with a project-wide link register and an interlock table that generates the logic. Export a linked PDF or one offline HTML file.

Request the build What's inside

Free during launch Every build on this site is free during the launch period. Paid editions and App Store listings come later; nothing here needs an account or a key.

macOS arm64 Windows x64 Offline single file FBD · CFC · SFC Engineering v0.60.1

IntelliLogic on a dark theme: a function-block diagram with four input blocks feeding an AND gate and a pump output block, with the I/O point properties panel open on the right. — FBD canvas with a DI point selected. Screenshot: IntelliLogic 0.60.1, sample project.

01What's inside

The specifics, with numbers.

The things a general-purpose tool does not do.

Sheets you can hand over

A4 and A3 drawing frames, four title-block styles, sheet groups and numbering that survive export. Project metadata is entered once at project level.

A link register, not sticky notes

NET→ and →NET blocks share one project-wide register. Rename a link once; both ends resolve on every sheet.

The interlock table is the source

Import Excel or CSV, apply offline rules, and generate logic sheets from the rows. Change a row and the generated logic follows.

Typed I/O, not generic boxes

DI, AI, DO and AO blocks record how they are driven — toggle, push button, e-stop, selector, slider, numeric — and what the output does: lamp, alarm, pulse or readout.

Live values on the wire

Simulation writes one value per wire — boolean or analog, one per fan-out branch — so the consequence shows up on the sheet, not in a separate watch table.

An assistant that edits, not chats

A cloud model can drive the editor through its own tools, one undoable step at a time. It needs a configured model; the editor works without one.

02Gallery

A closer look.

Real screenshots where they exist. Where a capture is missing, the frame says so.

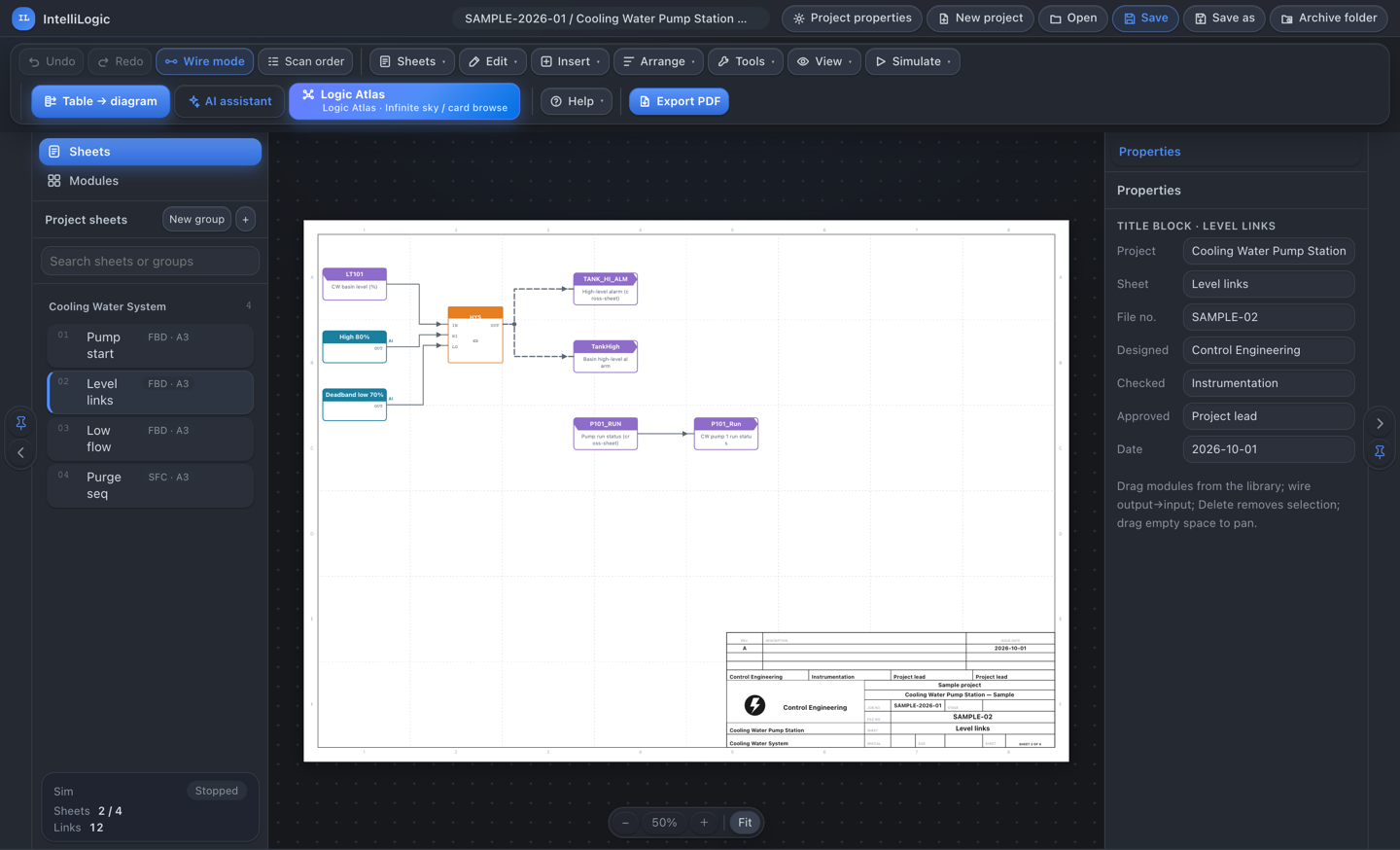

A complete A3 control sheet zoomed to fit: drawing frame, function-block diagram and title block in the lower right. — One A3 sheet at fit-to-page zoom, title block included.

The title block panel with labelled fields for project, sheet title, file number, designer, checker, approver and date, next to the drawing sheet. — Title-block fields sit next to the sheet they describe.

Logic Atlas: four control sheets laid out as clusters of coloured function blocks on a star-field grid, with a dashed cross-sheet link joining two sheets. — Logic Atlas with four sheets and one cross-sheet link, block colours keyed to block type.

03Get it

Download the build.

Everything is free during launch — the same binaries the studio tests. No account, no key.

Free during launch Every build on this site is free during the launch period. Paid editions and App Store listings come later; nothing here needs an account or a key.

macOS builds are Developer ID signed and notarised by Apple. Checksums are published with the release manifest.

Artifacts over the Pages file limit stay pending until the binary bucket is live. Ask and we will send those directly.
